IHI TRE60 Compressor — First Major Overhaul After 44,000 Hours

A complete first major overhaul of an IHI TRE60 three-stage centrifugal air compressor at a steel mill in northeast China — impeller inspection, cooler descaling, rust repair and full seal & bearing replacement, carried out by Turbomax engineers.

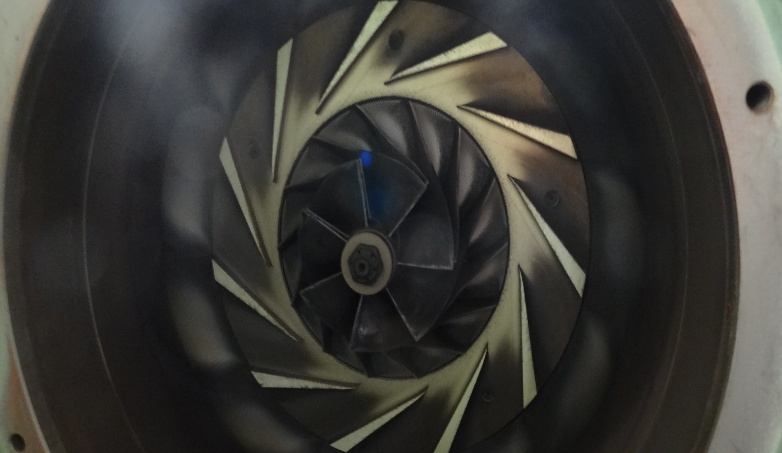

IHI TRE60 impeller and diffuser after opening the gearbox

Machine background

This IHI TRE60 three-stage centrifugal air compressor was delivered in 2007 and has been running at a steel mill ever since. At the time of the overhaul the machine had accumulated around 44,000 running hours — and this was its first major overhaul. That such a long first overhaul interval was possible says a lot about the robustness of the IHI TRE design, but after so many hours a full inspection and consumables renewal was overdue.

Model	IHI TRE60 (three-stage centrifugal air compressor)
Capacity	100 m³/min
Discharge pressure	0.9 MPa
Motor	Siemens 850 kW, 2,984 rpm
Running time at overhaul	≈ 44,000 hours (first major overhaul)

Condition found during overhaul

After opening the air end, the overall condition was better than expected for 44,000 hours — but the cooling water side told a different story:

Impellers (1st/2nd/3rd stage) — only light dust; dye penetrant inspection showed no cracks or damage
Coolers — inlet tubes of all three stages heavily blocked with white scale deposits; copper tubes severely plugged
Cooler end covers & cooling chambers — heavy rust on the water side (2nd/3rd stage cold side)
3rd-stage guide vanes — cavitation marks at the inlet
Gearbox — carbon deposits on high-speed and low-speed shafts (cleaned)

Photos from the job

1. Impellers — dye penetrant inspection

① As found — light dust only

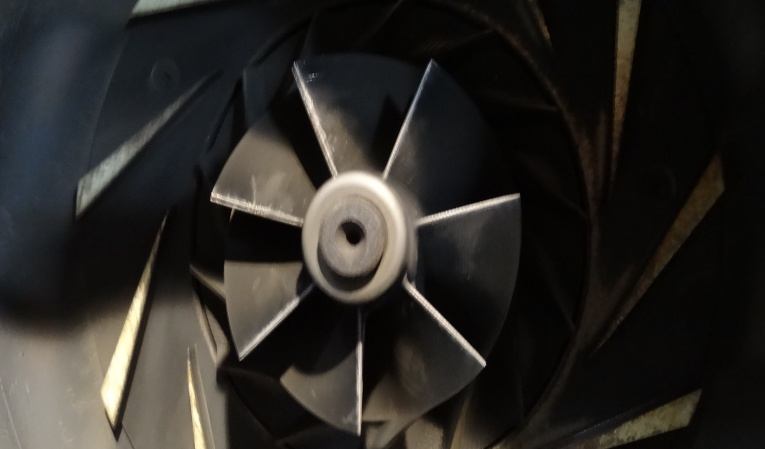

IHI TRE60 1st-stage impeller as found — light dust — 1st-stage impeller — light dust only

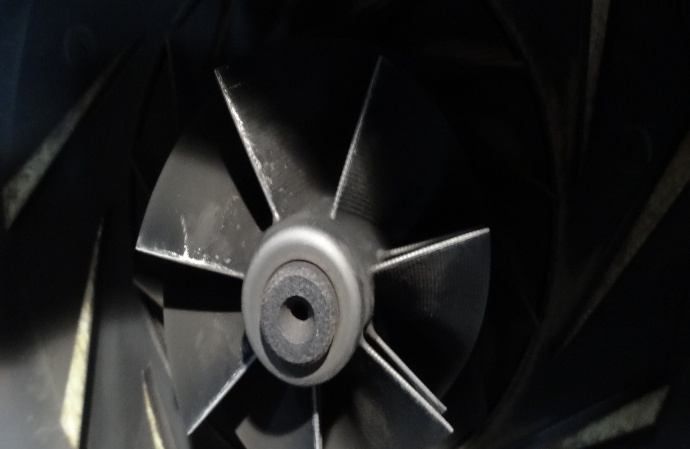

IHI TRE60 2nd-stage impeller as found — light dust — 2nd-stage impeller — light dust only

IHI TRE60 3rd-stage impeller as found — light dust — 3rd-stage impeller — light dust only

② During dye penetrant test

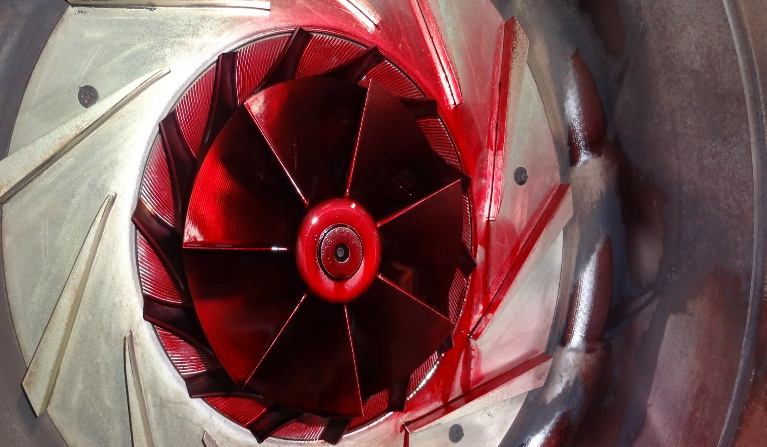

IHI TRE60 1st-stage impeller dye penetrant test in progress — 1st-stage impeller — penetrant applied

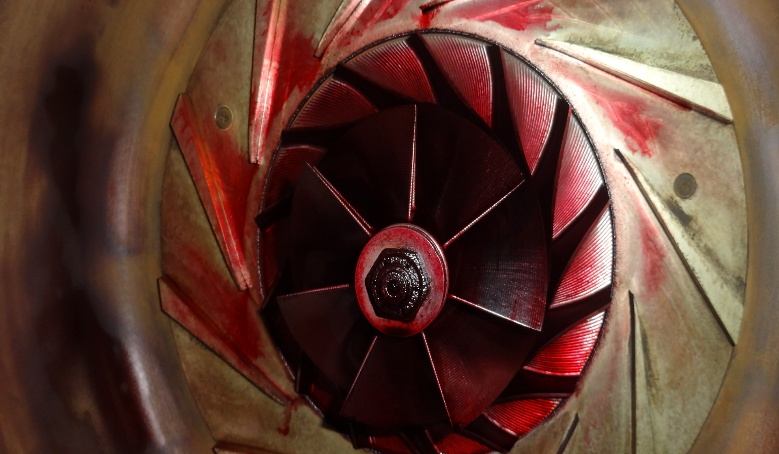

IHI TRE60 2nd-stage impeller dye penetrant test in progress — 2nd-stage impeller — penetrant applied

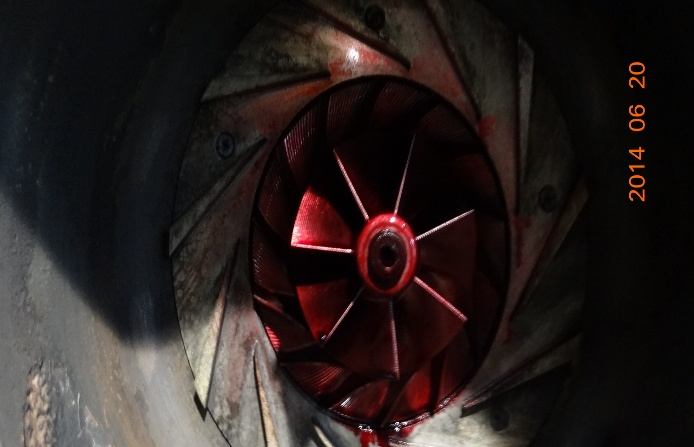

IHI TRE60 3rd-stage impeller dye penetrant test in progress — 3rd-stage impeller — penetrant applied

③ PT result — no defects found

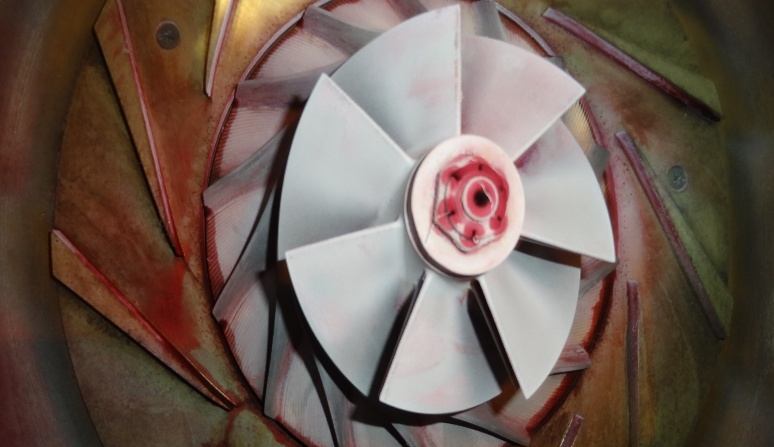

IHI TRE60 1st-stage impeller PT result — no cracks — 1st-stage impeller — PT shows no cracks

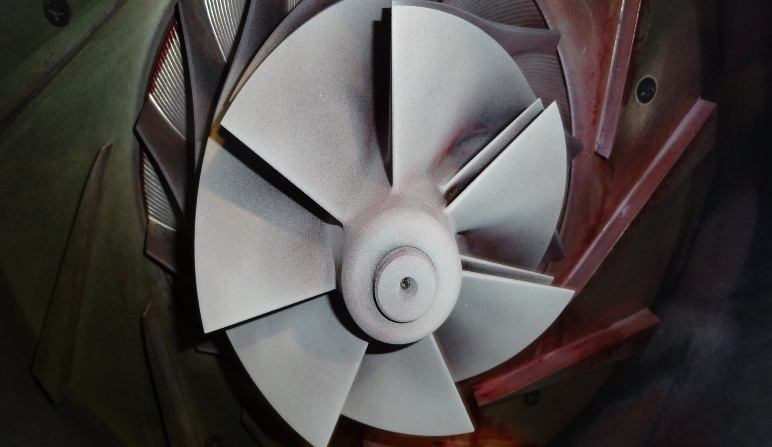

IHI TRE60 2nd-stage impeller PT result — no defects — 2nd-stage impeller — PT shows no defects

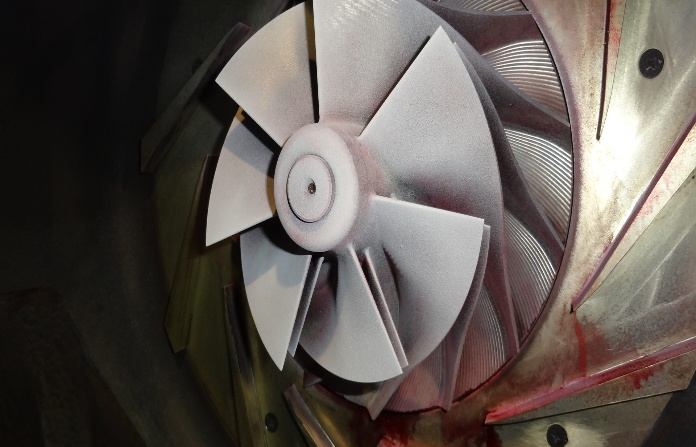

IHI TRE60 3rd-stage impeller PT result — no damage — 3rd-stage impeller — PT shows no damage

2. Cooler copper tubes — descaling

① As found — blocked by white scale

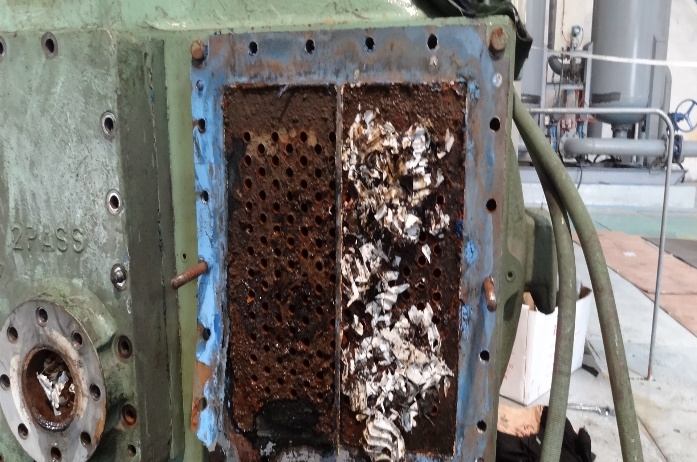

IHI TRE60 1st-stage cooler tubes blocked by white scale — 1st-stage cooler tubes — blocked by white scale

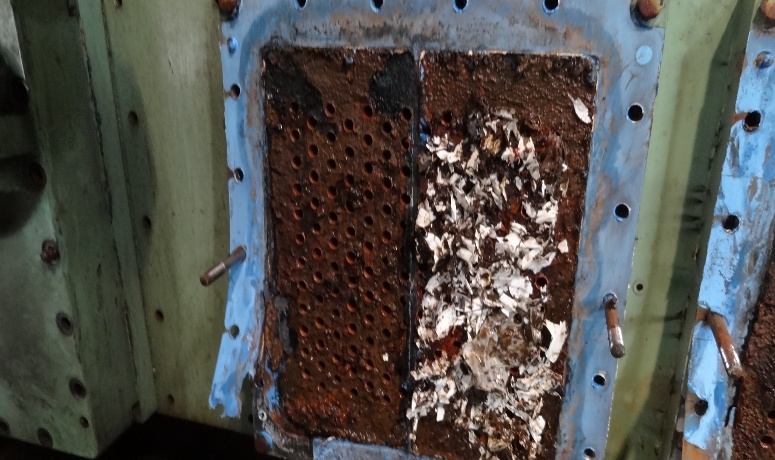

IHI TRE60 2nd-stage cooler tubes with heavy white pollution — 2nd-stage cooler tubes — heavy white pollution

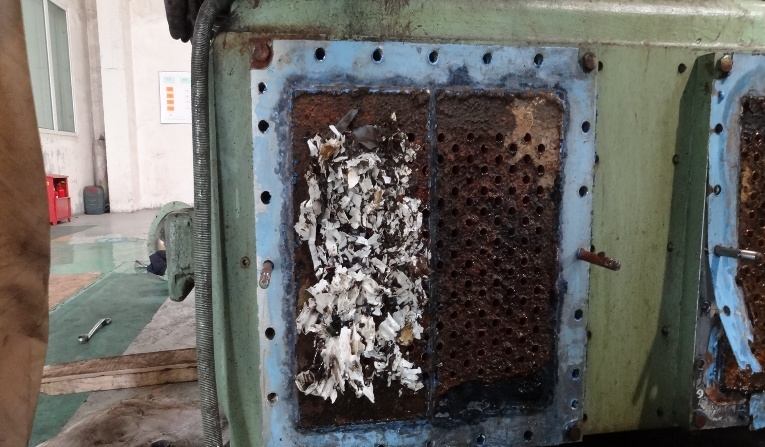

IHI TRE60 cooler tube bundle close-up of white scale — Cooler tube bundle — close-up of white scale

② After cleaning — every tube cleared

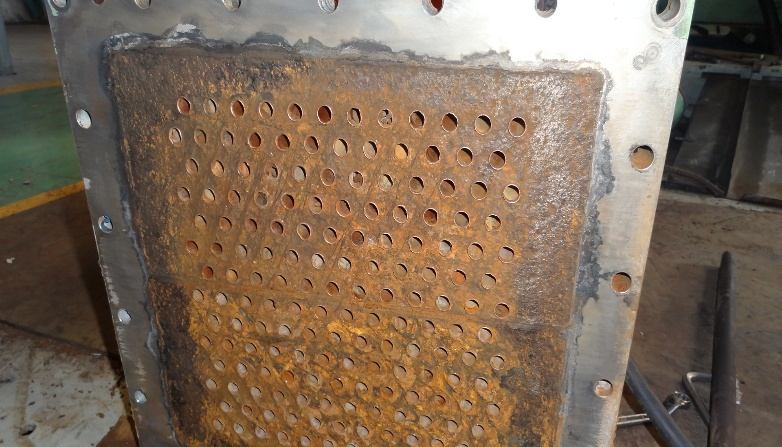

IHI TRE60 tube sheet after cleaning — all tube entrances open — Tube sheet after cleaning — all entrances open

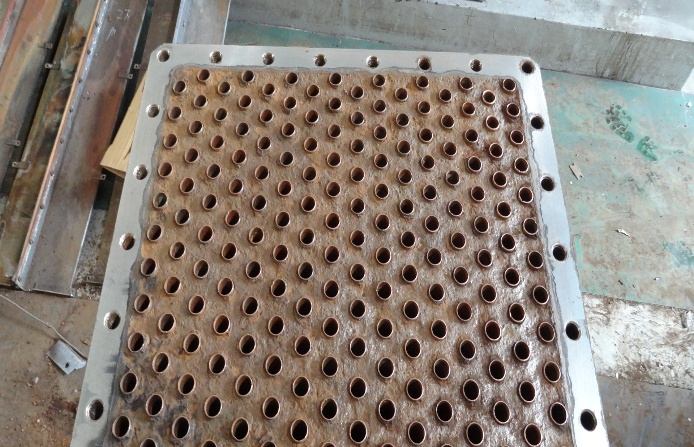

IHI TRE60 cooler tubes after descaling — fully cleared — Cooler tubes after descaling — fully cleared

3. Cooler end covers — rust removal by grinding

① As found — heavy rust

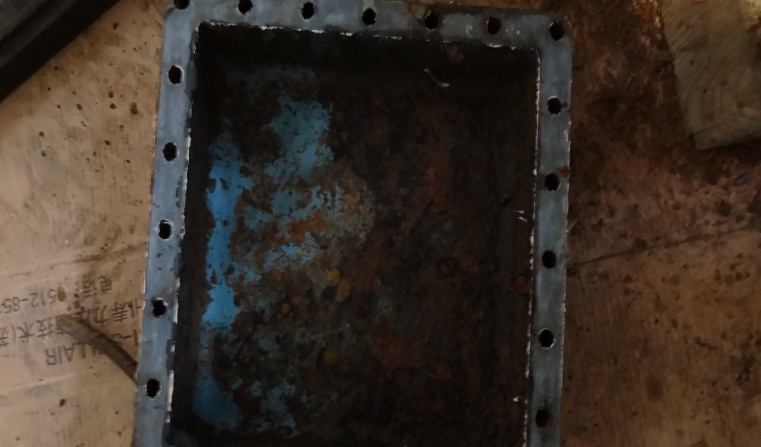

IHI TRE60 1st-stage cooler end cover with heavy rust — 1st-stage end cover — heavy rust

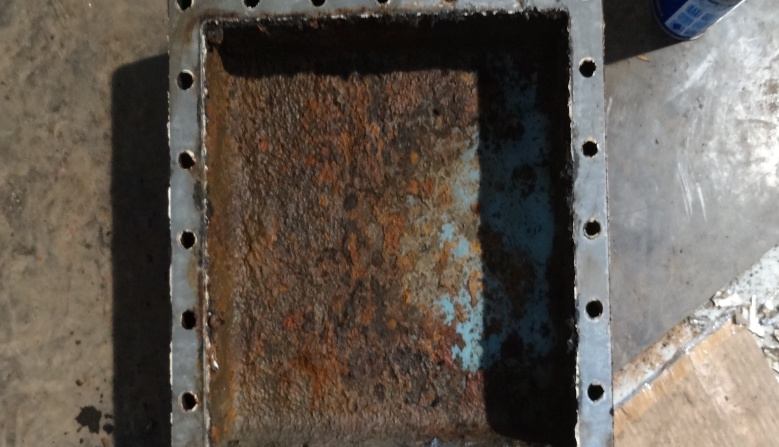

IHI TRE60 2nd-stage cooler end cover with heavy rust — 2nd-stage end cover — heavy rust

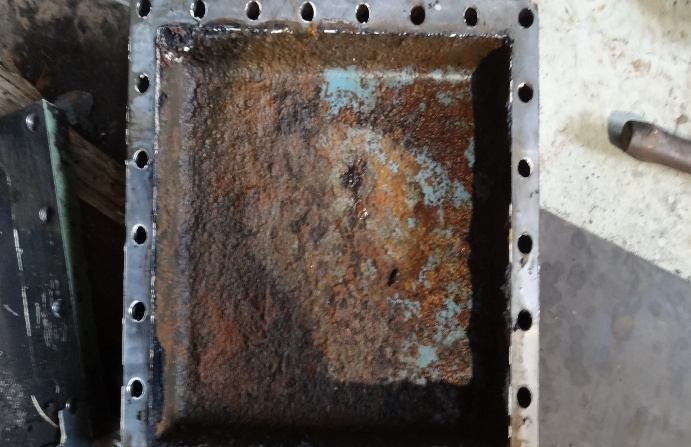

IHI TRE60 3rd-stage cooler end cover with heavy rust — 3rd-stage end cover — heavy rust

② After grinding

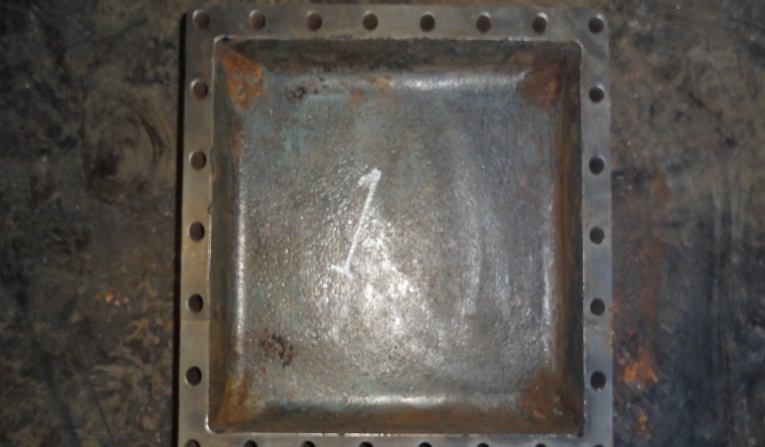

IHI TRE60 cooler end cover after grinding — bright surface — End cover after grinding — bright surface

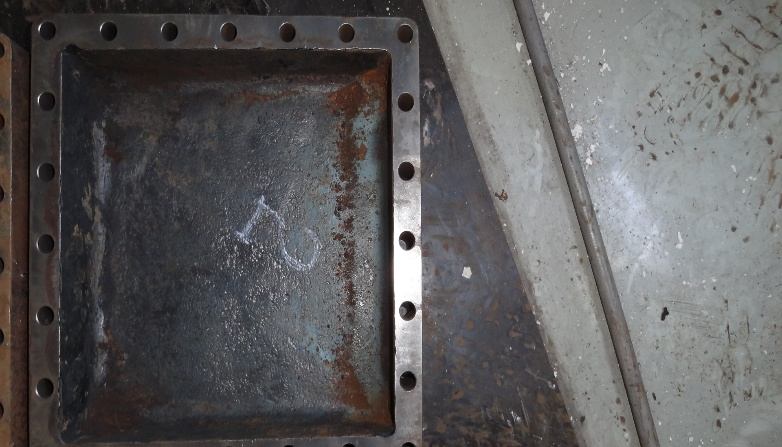

IHI TRE60 cooler end cover after grinding — rust removed — End cover after grinding — rust removed

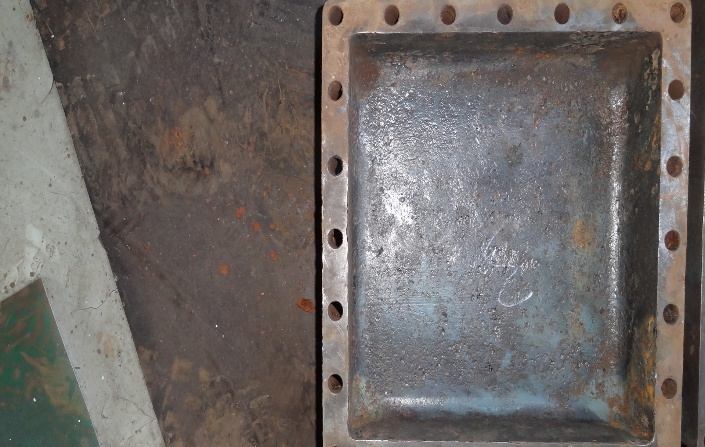

IHI TRE60 cooler end cover after grinding — clean metal — End cover after grinding — clean metal surface

4. Cooling chambers — cleaning

① As found — rust on the cold side (2nd / 3rd stage)

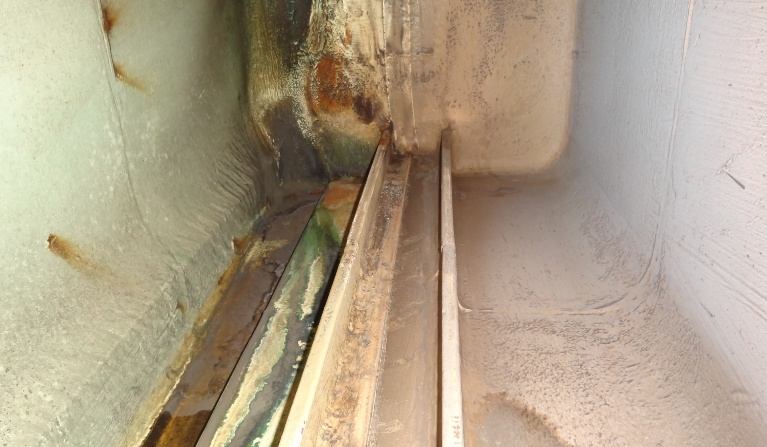

IHI TRE60 1st-stage cooling chamber — relatively clean — 1st-stage cooling chamber — relatively clean

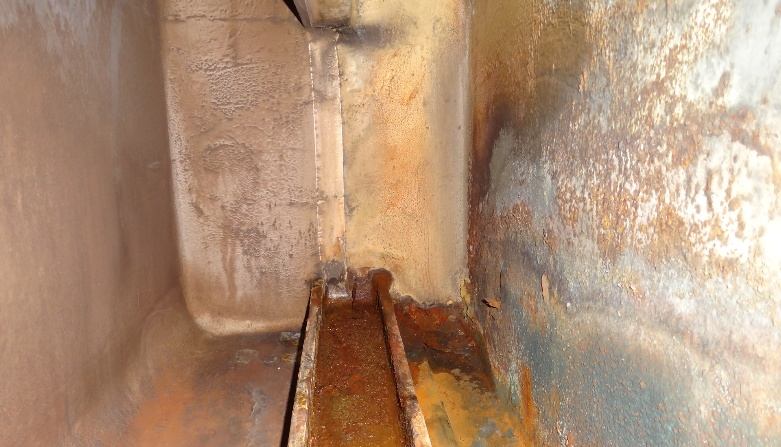

IHI TRE60 2nd-stage cooling chamber — heavy rust on cold side — 2nd-stage chamber — heavy rust on cold side

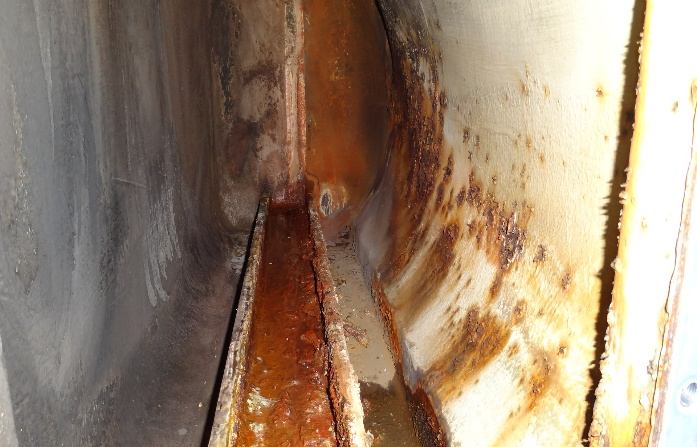

IHI TRE60 3rd-stage cooling chamber — heavy rust on cold side — 3rd-stage chamber — heavy rust on cold side

② After cleaning

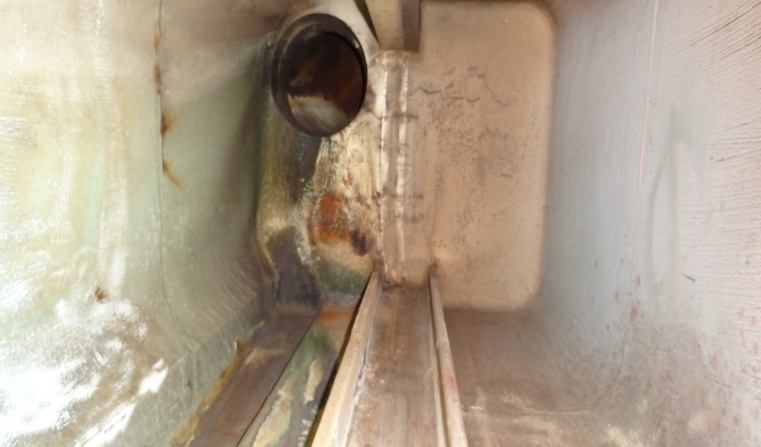

IHI TRE60 cooling chamber after cleaning — rust removed — Cooling chamber after cleaning — rust removed

5. Guide vanes — cavitation repair (3rd stage)

① As found — light dust, cavitation at 3rd-stage inlet

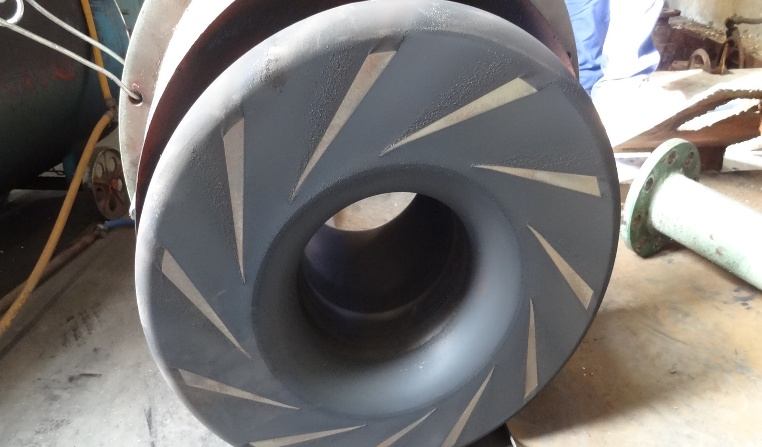

IHI TRE60 1st-stage guide vane — light dust — 1st-stage guide vane — light dust

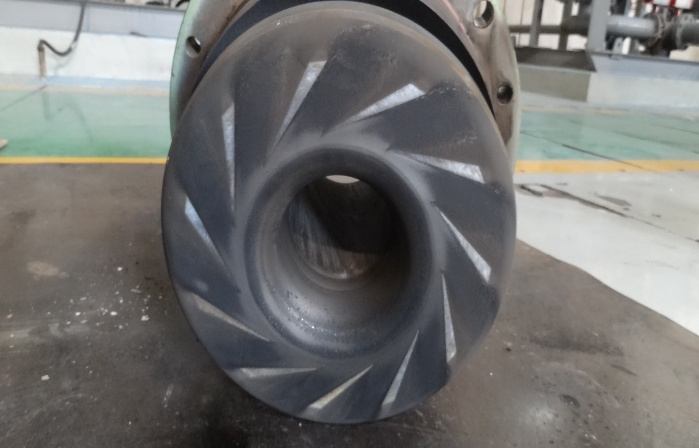

IHI TRE60 2nd-stage guide vane — light dust — 2nd-stage guide vane — light dust

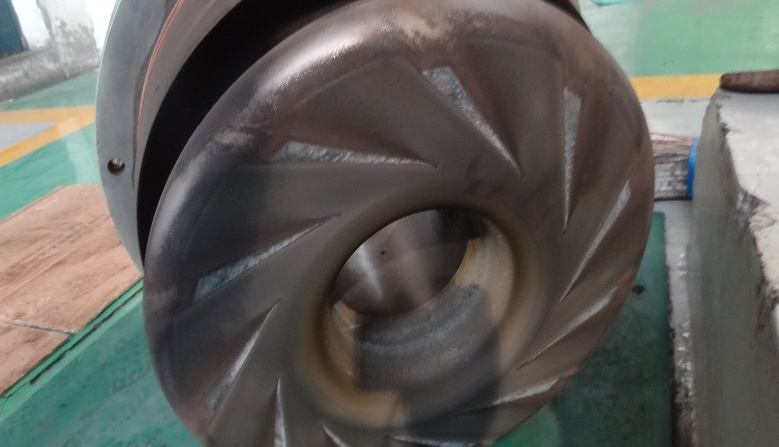

IHI TRE60 3rd-stage guide vane — cavitation at inlet — 3rd-stage guide vane — cavitation at inlet

② After grinding & polishing

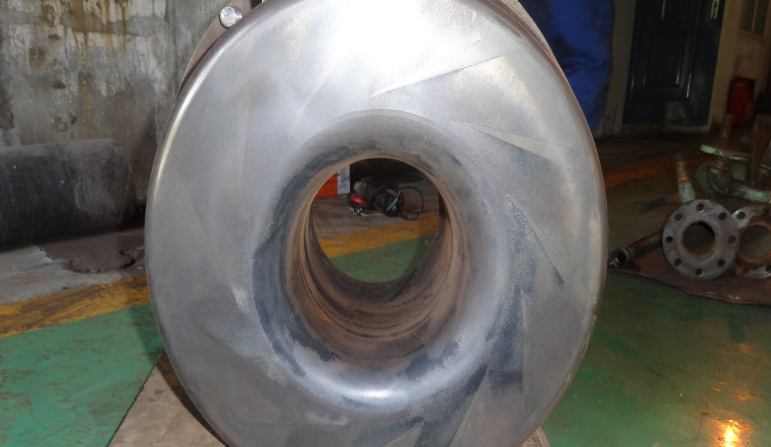

IHI TRE60 1st-stage guide vane after grinding — 1st-stage guide vane — after grinding

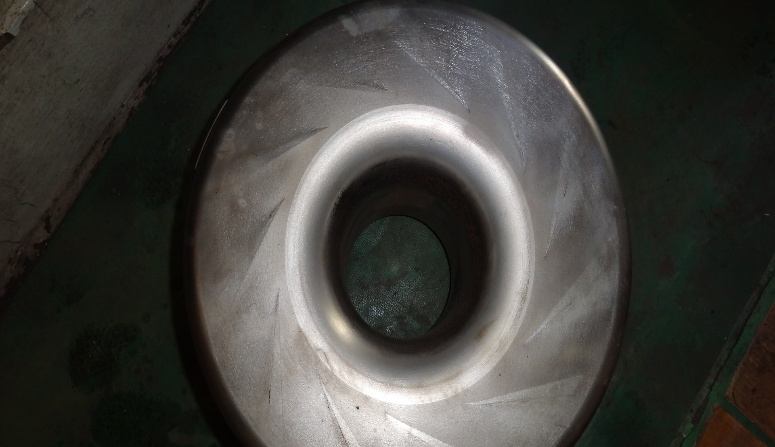

IHI TRE60 2nd-stage guide vane after grinding — 2nd-stage guide vane — after grinding

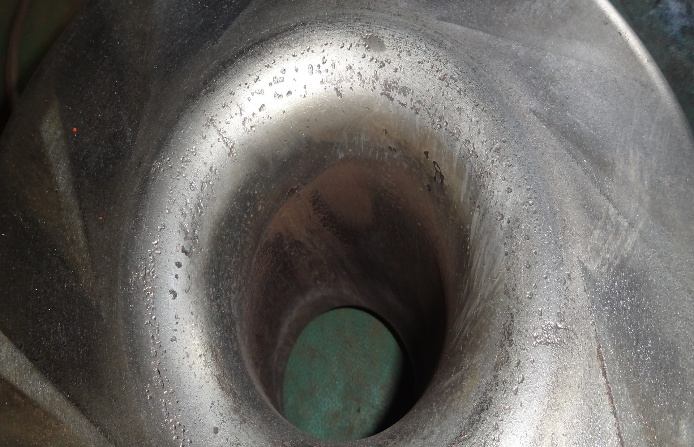

IHI TRE60 3rd-stage guide vane after grinding — cavitation repaired — 3rd-stage guide vane — cavitation repaired

6. Air filter — replacement

① Removed old filter elements

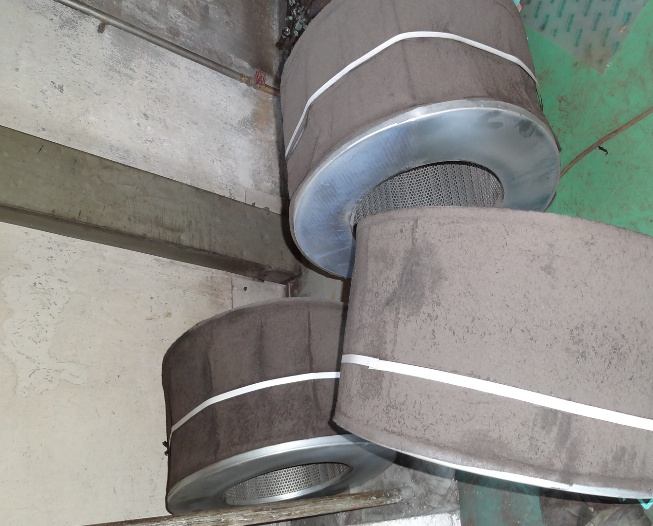

IHI TRE60 removed dirty air filter elements — Removed dirty air filter elements

② New elements installed

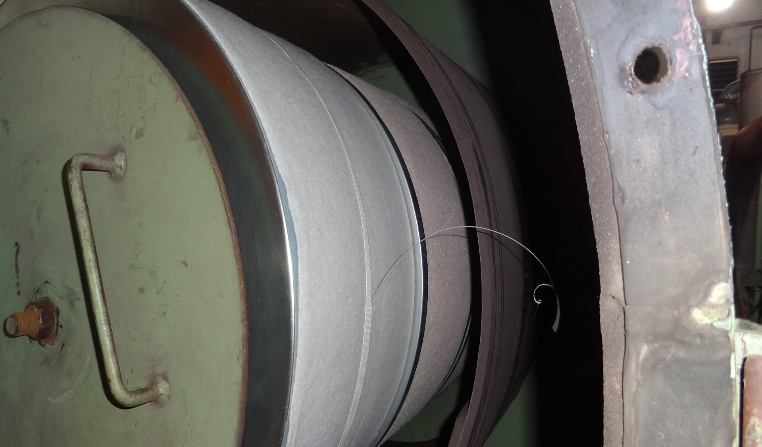

IHI TRE60 new air filter elements installed — New air filter elements installed

7. Bull gear bearing & shaft — condition check

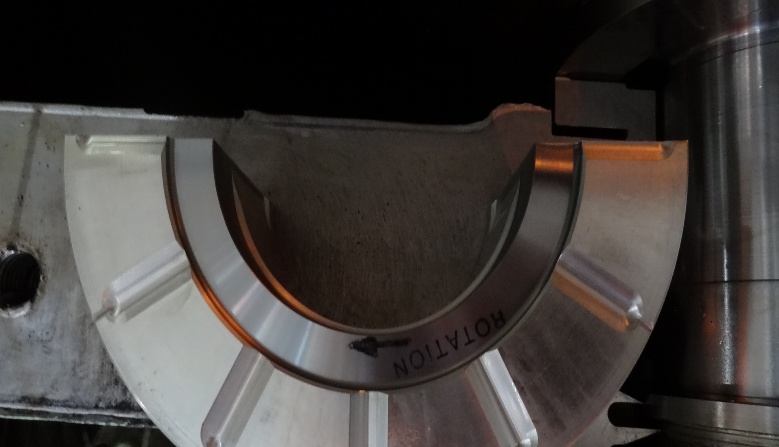

IHI TRE60 bull gear thrust bearing pads in good condition — Thrust bearing pads — good condition

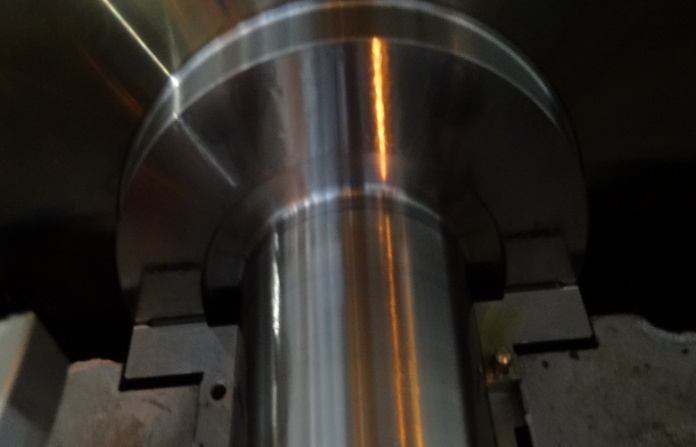

IHI TRE60 bull gear shaft journal in good condition — Bull gear shaft — journal in good condition

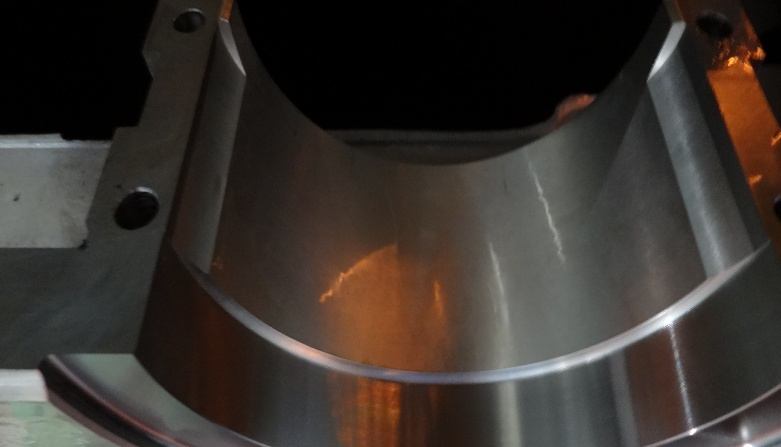

IHI TRE60 bearing assembly after inspection — Bearing assembly after inspection

Scope of work — parts replaced

1st / 2nd / 3rd stage air seals
1st / 2nd / 3rd stage oil seals
High-speed and low-speed bearings
Air filter elements (new)
Oil filter element
Oil mist separator
Lubricating oil (renewed)
After-cooler end cover gasket
Main oil pump coupling element
Main oil pump O-rings

In addition: complete cleaning of all cooler copper tubes (every tube cleared one by one), grinding of rusted end covers and cooling chambers, repair grinding of the cavitated 3rd-stage guide vanes, gearbox carbon cleaning, vibration probe gap voltage re-adjustment to standard, and cold alignment of motor and compressor.

Root cause & our recommendation

The white scale inside the cooler tubes came from the plant's cooling-tower water. We recommended treating the water at the upstream cooling tower to stop scale from entering the cooling circuit — otherwise the coolers will slowly plug again and cause high temperature trips. After the overhaul the compressor was restarted and all operating parameters returned to normal.
