Ingersoll Rand / Cameron TA6000 Overhaul
A three-stage integrally geared compressor concentrates the whole duty of the machine into one gearbox and three impellers. When the flow path fouls and the gearbox starts to show its age, cleaning alone is not enough — the machine has to be opened, measured and rebuilt. This case documents a complete TA6000 overhaul from casing lift to test run.
Quick facts
| Item | Detail |
|---|---|
| Machine type | Ingersoll Rand / Cameron TA6000, three-stage integrally geared, oil-free centrifugal air compressor |
| Drive layout | One bull gear driving three pinion shafts, one impeller per pinion |
| Bearings | Tilting-pad journal and thrust bearings on bull gear and pinions |
| Cooling | Intercooler and aftercooler water boxes, opened and cleaned during the overhaul |
| Scope in this case | Casing lift, gearbox inspection, diffuser and impeller renewal, cooler cleaning, reassembly and test run |
| Performed by | Turbomax service team — TA6000 turbo compressor overhaul |
Machine background

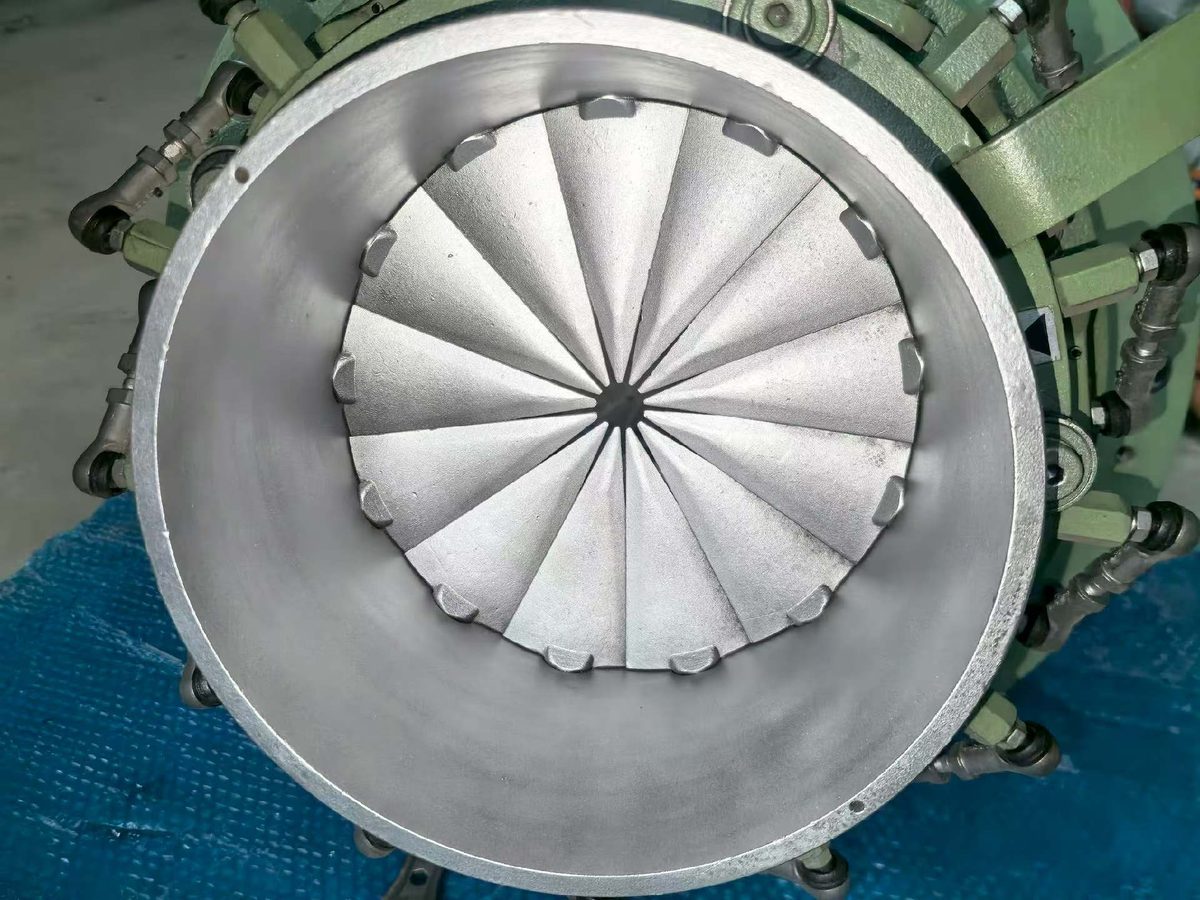

The TA6000 is a three-stage integrally geared compressor. A single bull gear drives three pinion shafts at increasing speed and decreasing impeller diameter, which is how the machine builds pressure in three steps inside one compact frame. Every intercooler between the stages removes the heat of compression, so any loss of cooler performance shows up as a rising discharge temperature rather than as a mechanical fault.
TA6000 units normally come into the workshop for one of three reasons: a planned major overhaul based on running hours, a measurable drop in stage efficiency caused by fouling or vane corrosion in the diffusers, or bearing and seal wear found by vibration and temperature monitoring. In this case the flow path and the gearbox were both addressed in the same shutdown, which is the practical choice once the casing is already open.
What the inspection found

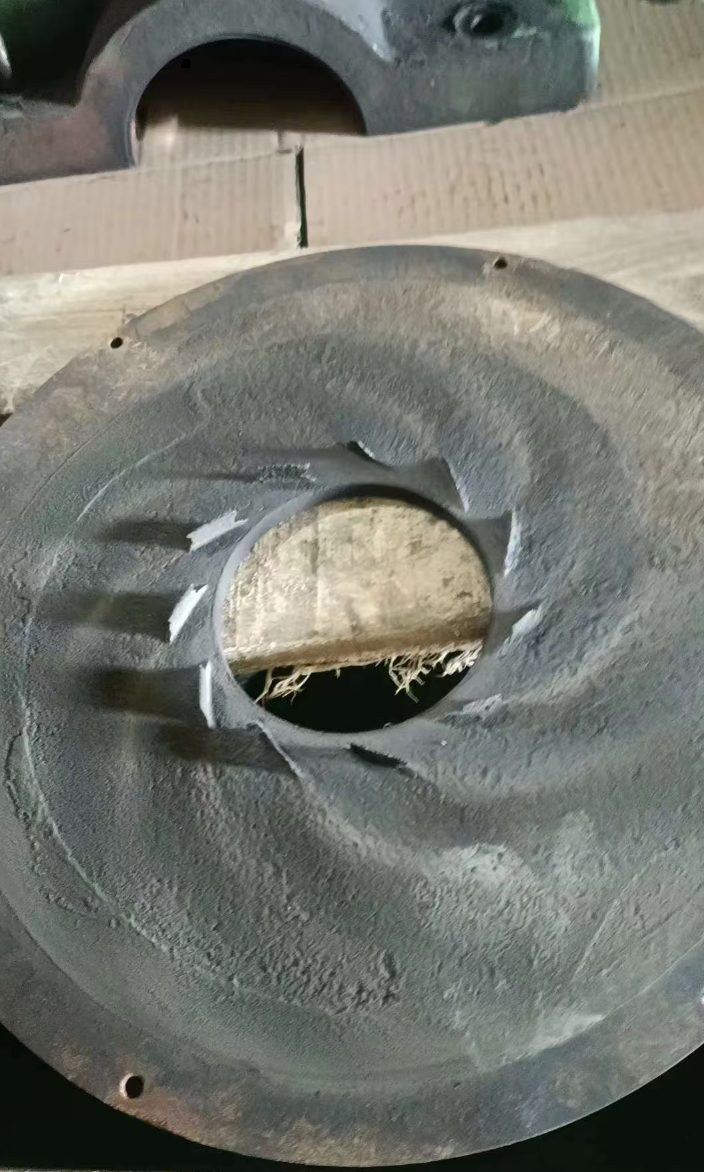

- Diffuser condition — vane passages showed fouling and corrosion, with the flow area partly blocked. A diffuser that no longer passes air cleanly costs pressure ratio at every stage downstream.

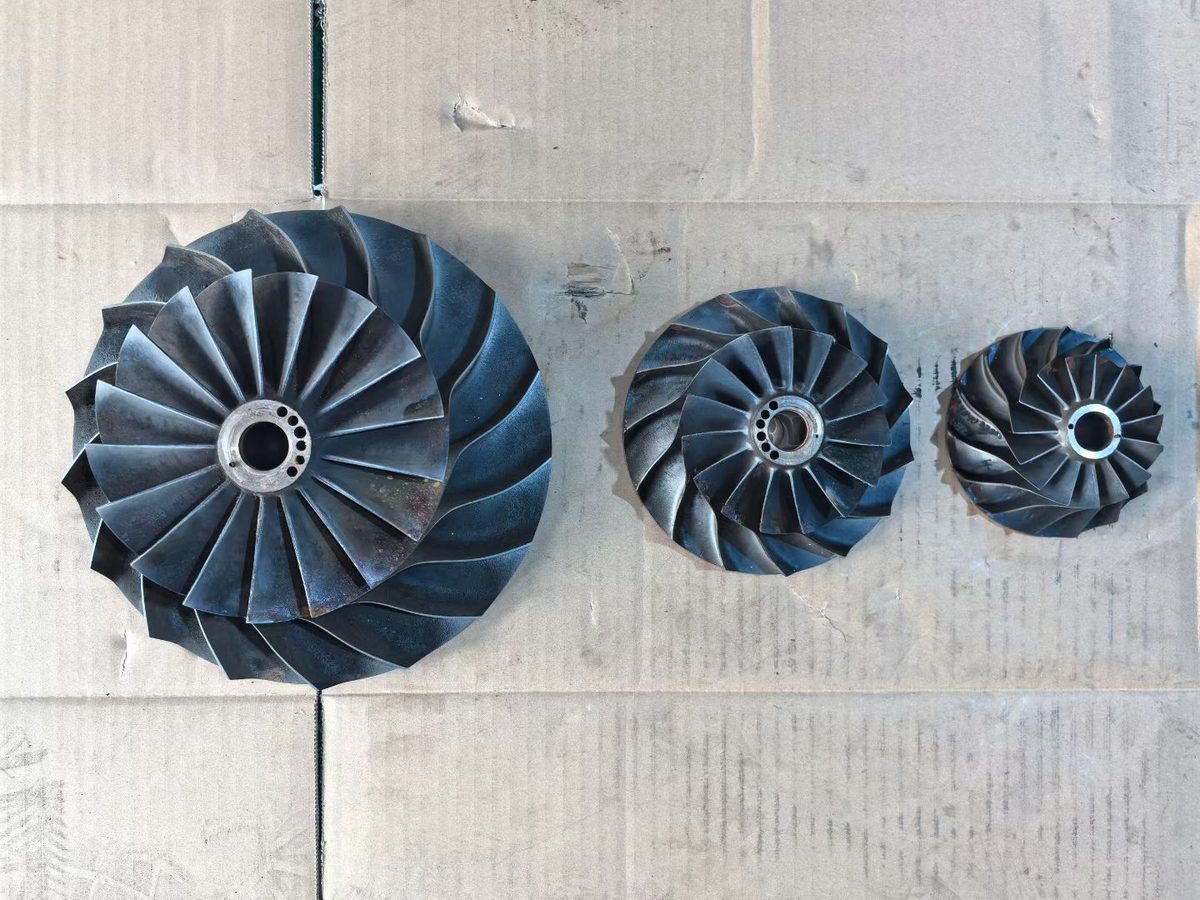

- Impeller condition — all three impellers were removed and checked for blade tip erosion, deposit build-up and bore wear. Blade tip clearance was measured against the drawing before the cleaning and replacement decision.
- Gearbox and bearings — with the gearbox opened, pinion shafts and tilting pads were inspected for babbitt contact, clearance growth and oil nozzle condition.
- Cooler water boxes — intercooler and aftercooler boxes were opened for tube and bundle inspection, because restricted cooling raises stage inlet temperature and cuts efficiency.
- Seals and oil circuit — labyrinth seals, O-rings, oil filters and oil condition were checked as part of the same strip-down.
Scope of work

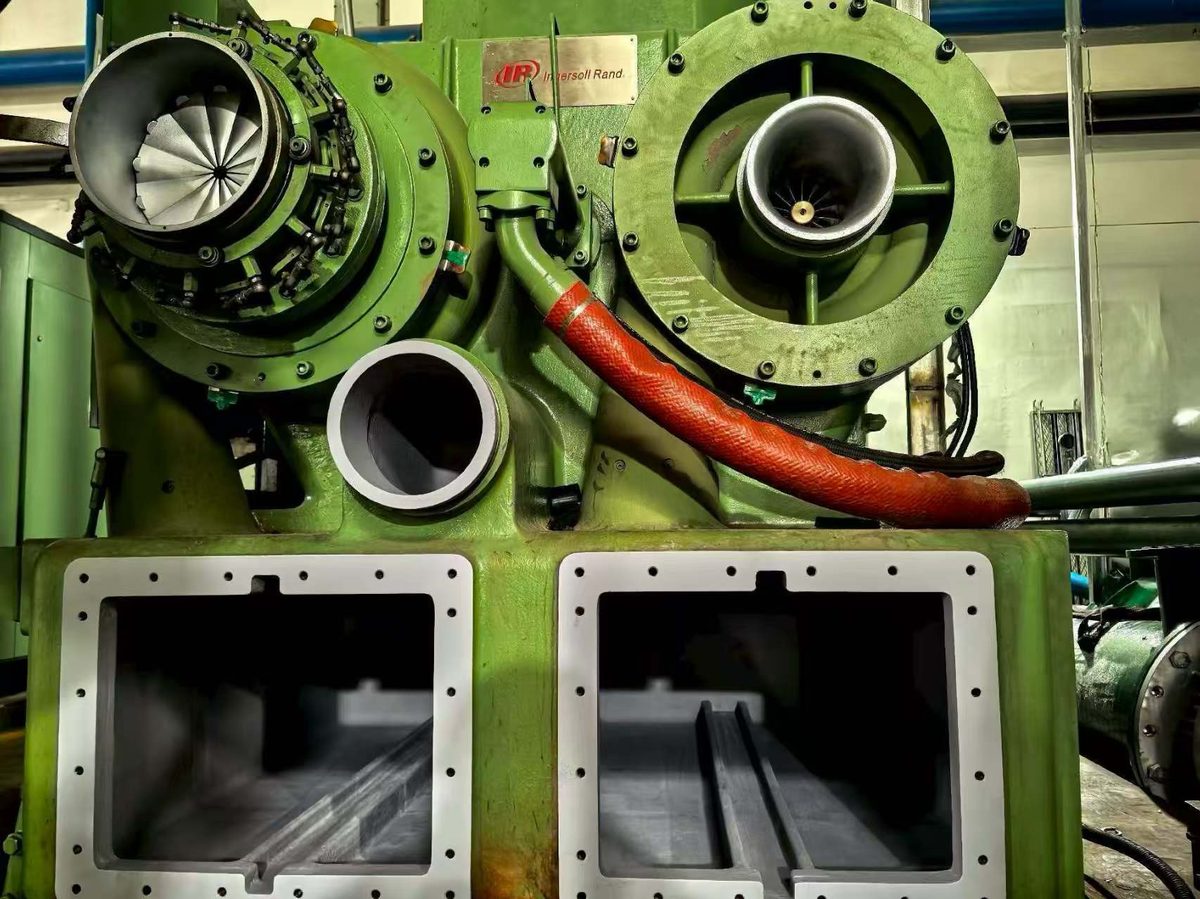

- Casing lift and stage opening — piping disconnected, casing lifted, stage volutes and cooler boxes opened for access.
- Impeller and diffuser removal — all three stages stripped, parts marked per stage so nothing is mixed during reassembly.

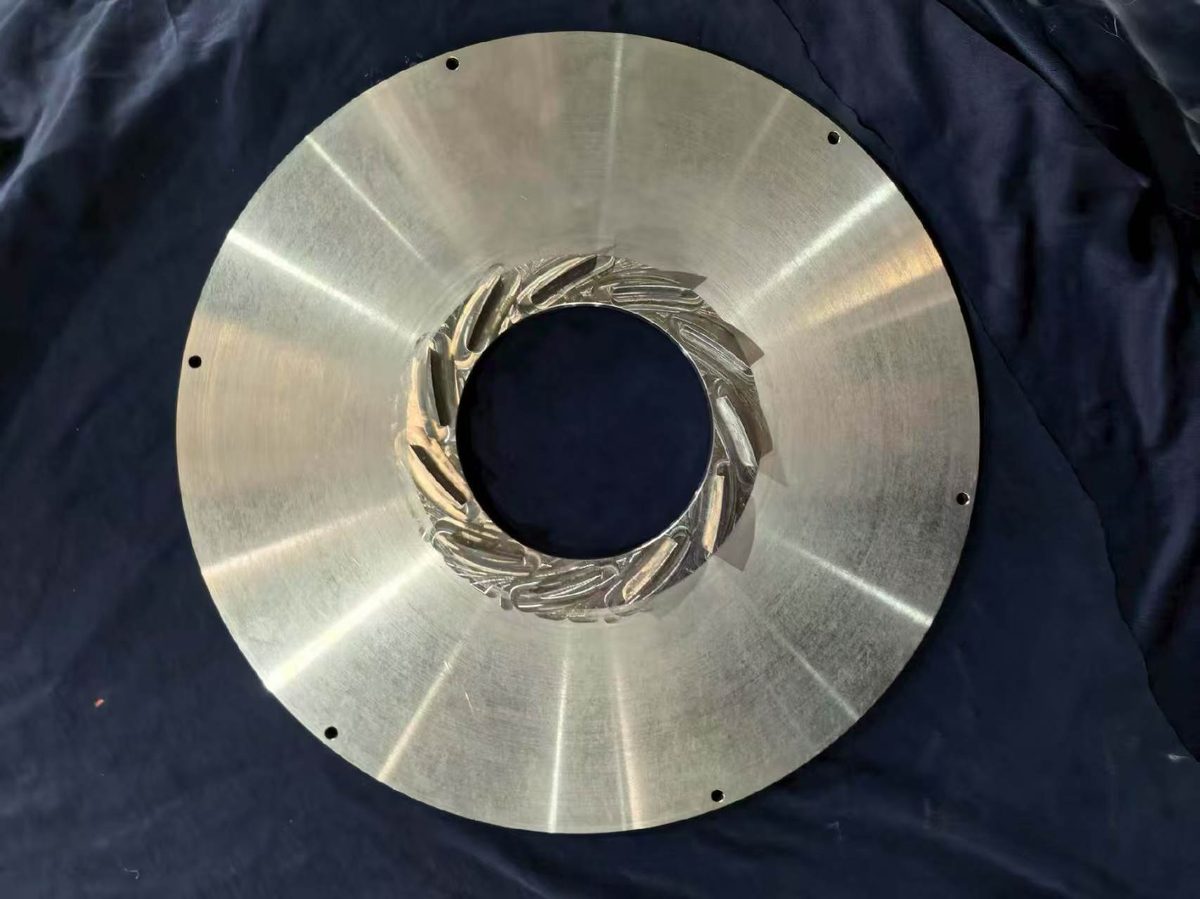

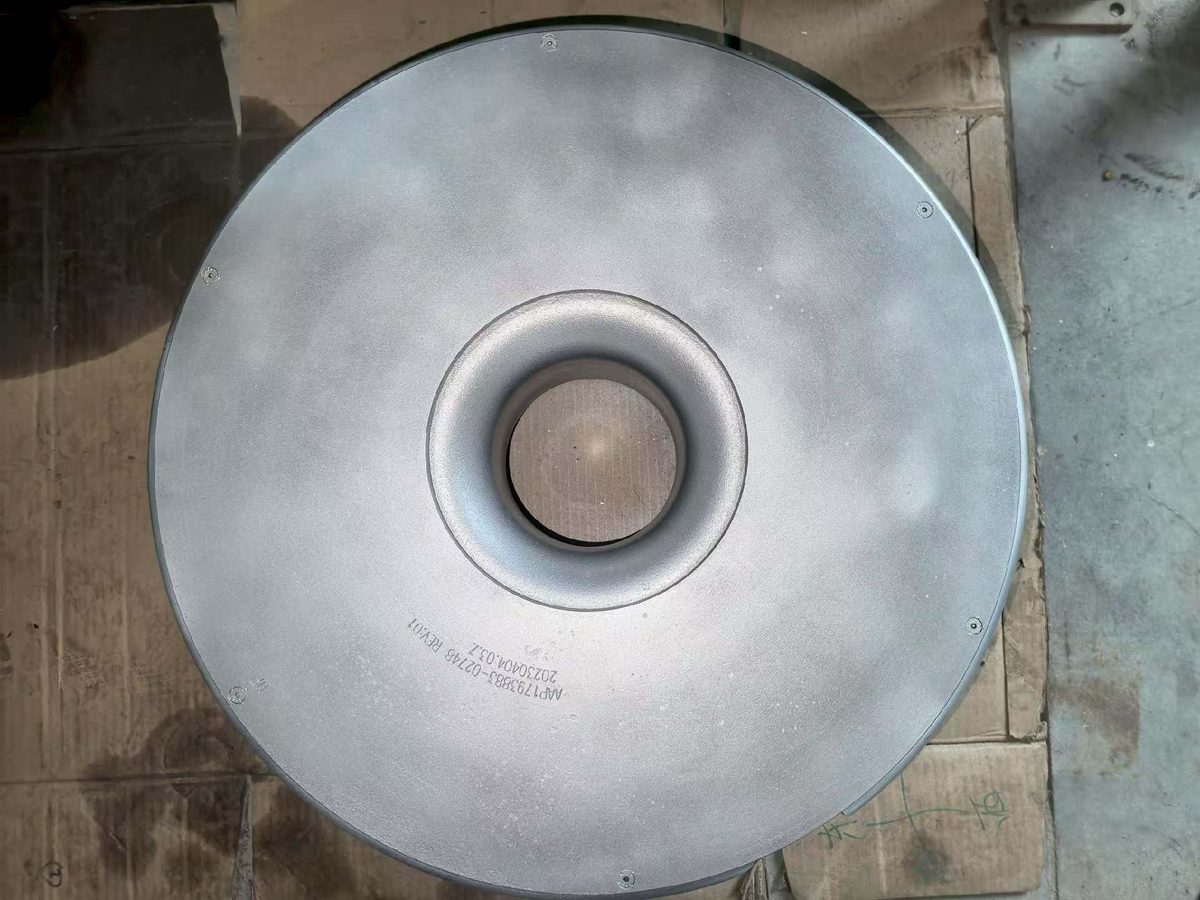

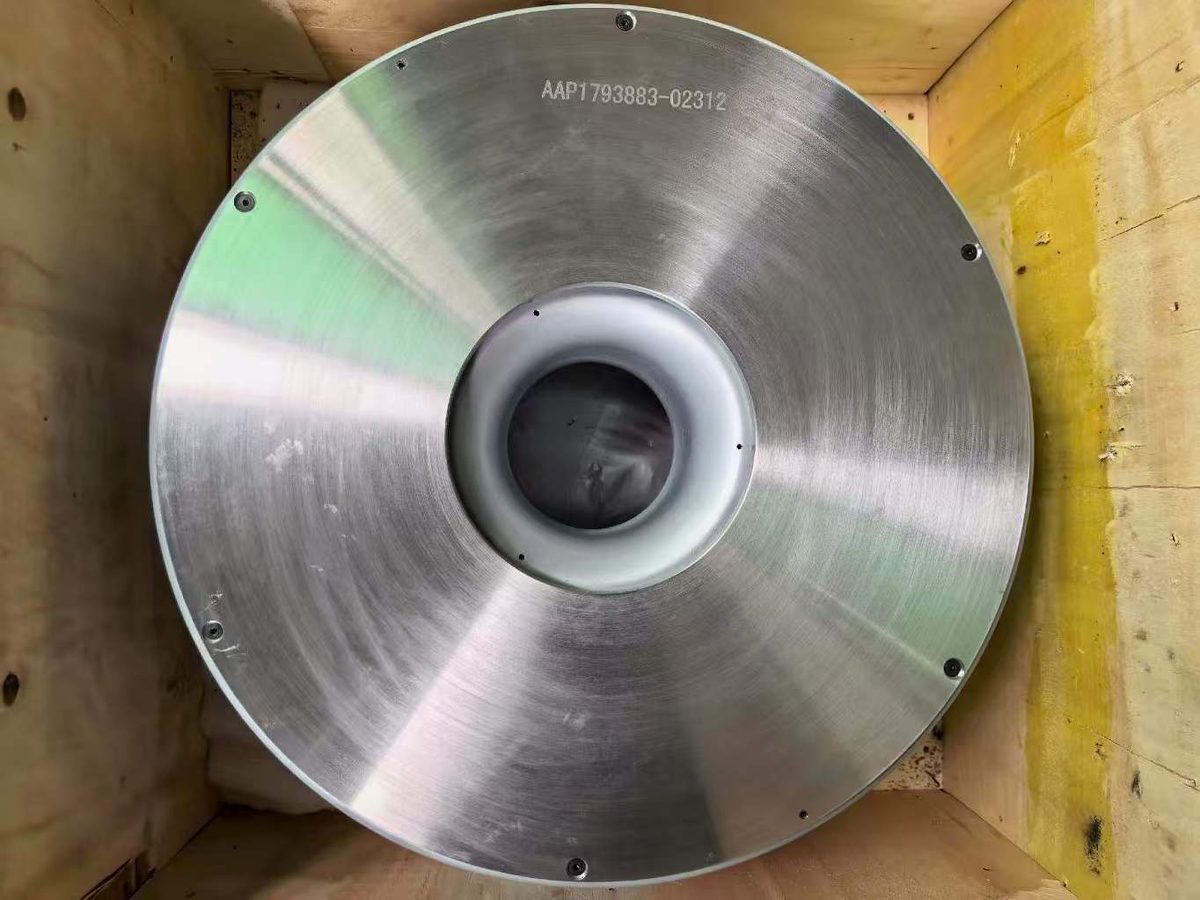

- Diffuser renewal — worn diffusers replaced with new parts, with the laser-etched part number checked against the OEM drawing before fitting.

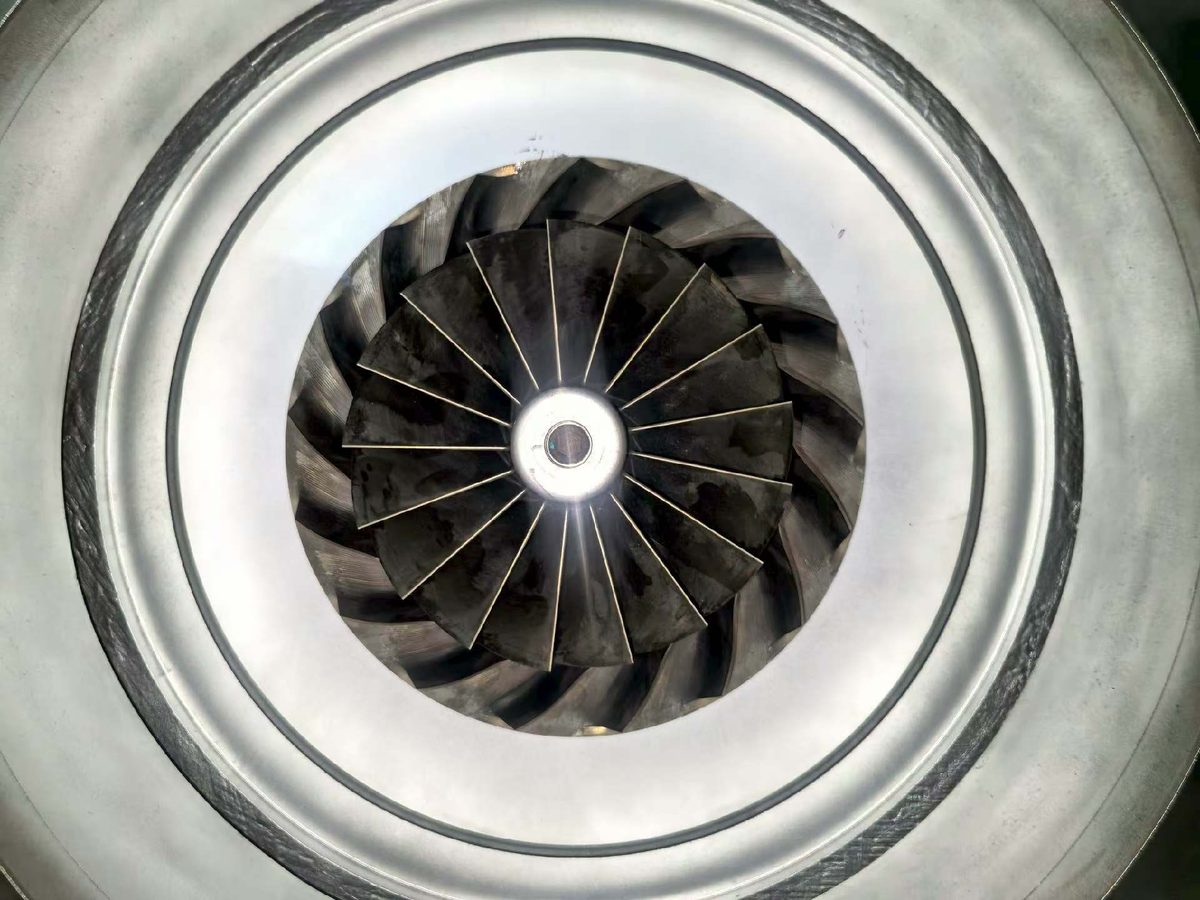

- Impeller cleaning and inspection — deposits removed, blades checked for erosion and tip clearance measured.

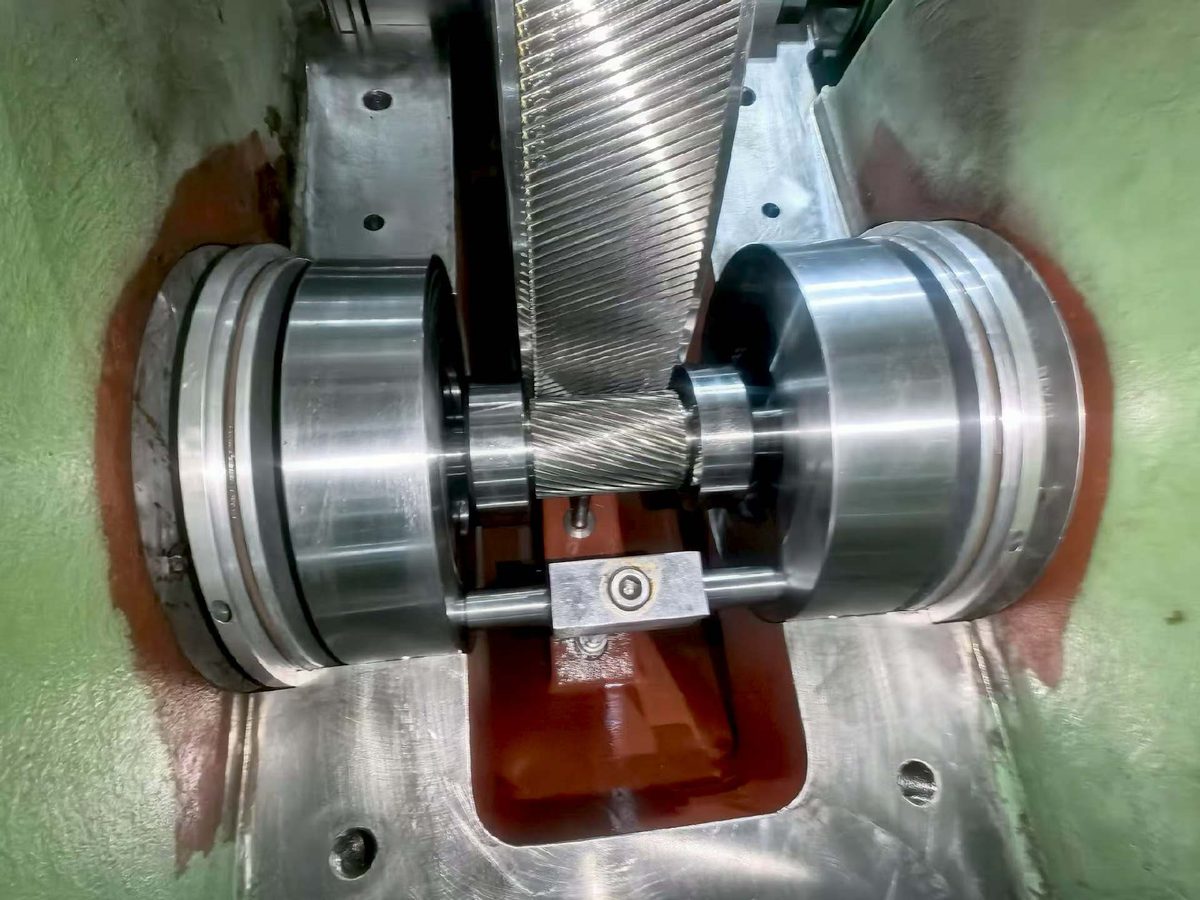

- Gearbox inspection — pinion shafts, tilting-pad bearings and oil nozzles inspected; clearances recorded position by position.
- Cooler and oil circuit service — intercooler and aftercooler boxes cleaned, filter elements and oil renewed.
- Reassembly — stages rebuilt in reverse order, clearances re-measured, casing closed and torqued to specification.
- Test run — machine started and run up to confirm stage pressures, discharge temperature, bearing temperature and vibration returned to normal bands.
Photo record
Why the diffuser decides whether the overhaul pays off
On a three-stage machine, each stage has to deliver its share of the total pressure ratio. If a diffuser is fouled or its vanes are corroded, the stage loses efficiency and the next stage has to work from a worse starting point. The result is a compressor that still runs, still reaches roughly the right discharge pressure, but uses more power and runs hotter — a loss that is easy to accept and expensive to keep.
That is why the diffuser and impeller work in this overhaul matters more than the visual cleanliness of the machine. Replacement diffusers and impellers only restore performance when they match the OEM vane geometry and tip clearance; a part that bolts in but differs in blade angle will run, and will quietly give back part of the efficiency the overhaul was meant to recover. Turbomax supplies TA6000 diffusers, impellers, scrolls, bearings and seals matched to OEM drawings and part numbers, and confirms dimensions before dispatch.
Frequently asked questions
What is the Cameron TA6000 compressor?
The Cameron TA6000, now built and supported under Ingersoll Rand, is a three-stage integrally geared, oil-free centrifugal air compressor. One bull gear drives three pinion shafts, each carrying an impeller of decreasing diameter, so the machine reaches a high pressure ratio in a compact package. It is widely used for plant and instrument air in steel, chemical, electronics and food processing plants.
What is included in a TA6000 major overhaul?
A TA6000 major overhaul normally covers casing lift, gearbox opening, tilting-pad bearing inspection and replacement, labyrinth seal renewal, diffuser and impeller inspection or replacement, intercooler and aftercooler cleaning, oil circuit and filter service, then reassembly with recorded clearances and a controlled test run.
How do you know when a TA6000 needs a diffuser or impeller replacement?
The decision is made from evidence, not from running hours. Fouling and corrosion on the diffuser vanes, erosion at the impeller blade tips, a drop in stage pressure ratio, rising discharge temperature at constant load, and vibration or axial displacement trends all point to flow-path wear. Measurement of blade tip clearance and comparison against the OEM drawing confirms whether cleaning is enough or replacement is required.
Can Turbomax supply TA6000 spare parts for an overhaul?
Yes. Turbomax supplies alternative TA6000 diffusers, impellers, scrolls, tilting-pad bearings, labyrinth seals, intercoolers, valves and filter elements matched to OEM drawings and part numbers. See our Cameron TA6000 spare parts list for the covered part numbers.
How long does a TA6000 overhaul take?
On-site bearing and seal work with the casing lifted normally fits a planned shutdown window, while a full gearbox overhaul that includes diffuser or impeller renewal needs a longer window because parts are matched and measured before assembly. The schedule is set by parts availability and by how much measurement and correction the gearbox needs, so the part list should be confirmed before the shutdown date is fixed.
Need an overhaul or spare parts for your TA6000?
Send us the compressor model, serial number and the part numbers stamped on the nameplate or maintenance manual. We will confirm the part list, dimensions and availability before your shutdown window is fixed.
