Ingersoll Rand Turbo-Air (TA) Centrifugal Compressor Series Guide — Specifications & Spare Parts
A practical overview of the Turbo-Air oil-free centrifugal compressor family — models, specifications, key engineering features and the spare parts that keep them running.

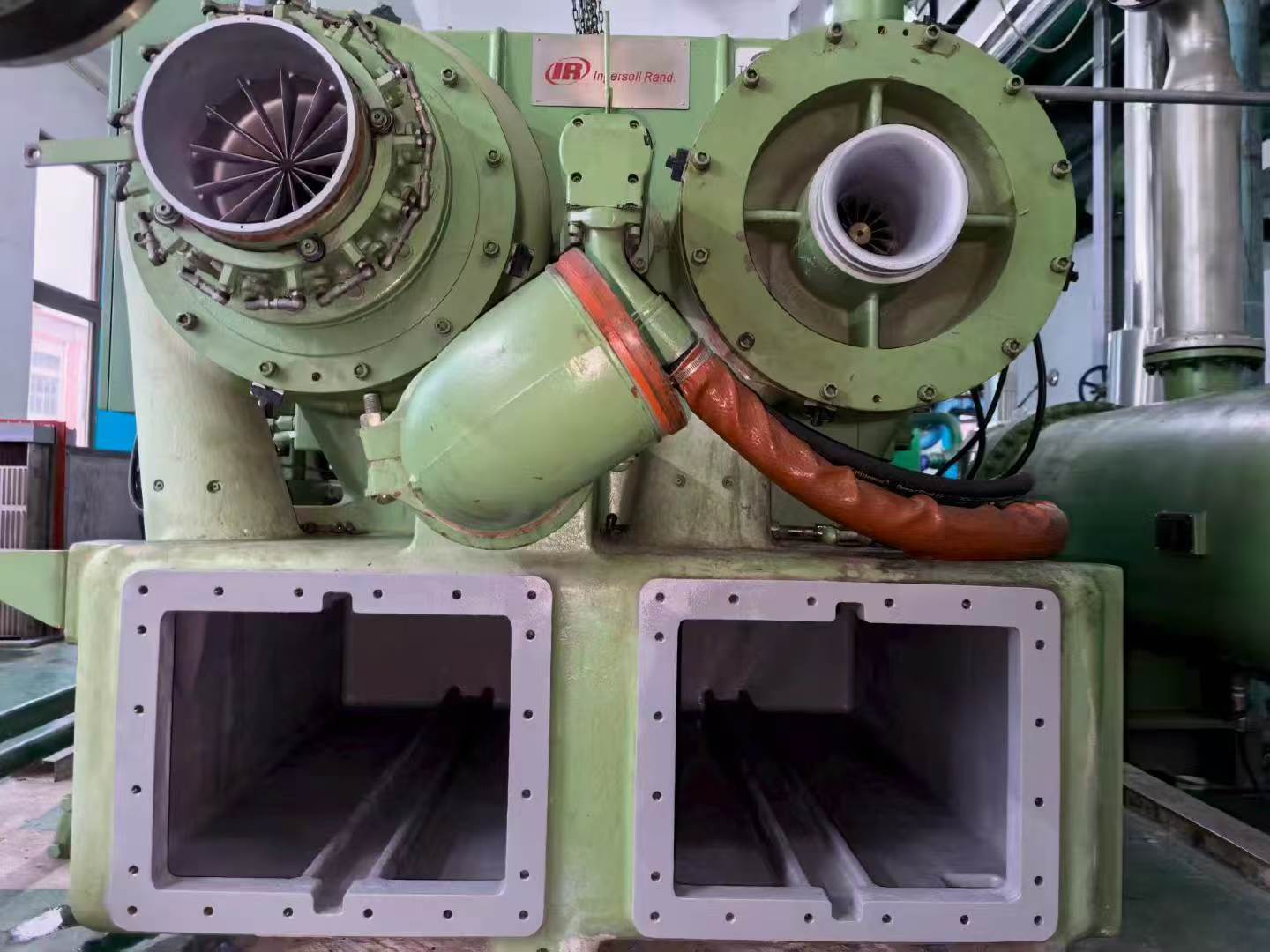

The Turbo-Air (TA) series is Ingersoll Rand's flagship line of oil-free centrifugal air compressors, designed for general industrial plants as well as demanding advanced-industry applications. With a power range spanning 112 kW to 2,237 kW (150 hp to 3,000 hp) and discharge pressures up to 42 bar (610 psig), the TA family covers virtually every plant-air and process-air need. The machines are engineered for easy installation, operation and maintenance, and have accumulated decades of reliable service across steel, mining, textile, food & beverage, automotive, pharmaceutical, chemical, power generation and petrochemical industries worldwide.
As an independent supplier of alternative spare parts for centrifugal compressors, Turbomax supports Turbo-Air (TA) users globally with replacement impellers, bearings, seals, diffusers, coolers and overhaul service kits. This guide summarizes the TA series from a specifications and maintenance perspective — so you can identify your machine, understand its design and order the correct spare parts.
A century of centrifugal compressor innovation
The Turbo-Air line did not appear overnight — it is the product of more than a century of centrifugal compressor development by Ingersoll Rand (and its former centrifugal division, Cooper Cameron). Key milestones include:
- 1912 — Ingersoll Rand introduces its first oil-free centrifugal compressor
- 1960 — First small integral-gear centrifugal compressor
- 1965 — First packaged centrifugal compressor
- 1994 — Turbo Air 2000 launched with fourth-generation microprocessor control
- 1997 — Turbo Air 3000 introduced
- 1999 — TA-6000 introduced
- 2001 — Turbo Air Cooled 2000 launched; TA-11000 and Vantage control panel introduced
- 2005 — Turbo Air 2020 and Turbo Air 9000 launched; first centrifugal compressor capable of 40 bar (600 psig) for standard industry
- 2007 — First centrifugal compressor manufacturer to achieve ISO 8573-1 Class 0 certification
- 2015 — Ingersoll Rand acquires Cameron's Centrifugal Compression Division
Turbo-Air (TA) model range and specifications
The Turbo-Air family comprises several models grouped by power and pressure. The table below summarizes the main specifications for each model.
| Model | Motor Power | Discharge Pressure | Flow Capacity | Weight (excl. motor) |
| TA 2000 | 112-260 kW (150-350 HP) | 3.5-10.3 barg (50-150 psig) | 14-48 m³/min (505-1,700 CFM) | 3,400 kg (7,500 lbs) |
| TA Cooled 2000 | 112-260 kW (150-350 HP) | 3.5-10.3 barg (50-150 psig) | 16-48 m³/min (550-1,700 CFM) | 4,536 kg (10,000 lbs) |
| TA 3000 | 300-600 kW (400-800 HP) | 3.5-10.3 barg (50-150 psig) | 57-113 m³/min (2,000-4,000 CFM) | 5,443 kg (12,000 lbs) |
| TA 6000 | 600-1,300 kW (800-1,750 HP) | 3.5-10.3 barg (50-150 psig) | 113-227 m³/min (4,000-8,000 CFM) | 6,350 kg (14,000 lbs) |
| TA 2040 (high pressure) | 430-600 kW (580-800 HP) | ~42 barg (~610 psig) | 42-51 m³/min (1,500-1,800 CFM) | 6,350 kg (14,000 lbs) |
| TA 6040 (high pressure) | ~1,678 kW (~2,250 HP) | ~42 barg (~610 psig) | 127-167 m³/min (4,500-6,000 CFM) | 8,635 kg (19,000 lbs) |
| NX 8000 | 750-1,700 kW (1,000-2,250 HP) | 2.5-14.5 barg (35-210 psig) | 135-305 m³/min (4,850-10,800 CFM) | 11,340 kg (25,000 lbs) |
| NX 12000 | 1,120-2,237 kW (1,500-3,000 HP) | 3.5-14.5 barg (50-210 psig) | 212-430 m³/min (7,500-15,200 CFM) | 18,143 kg (40,000 lbs) |
Key engineering features of the Turbo-Air series
Across all TA models, several design features are shared and are central to both performance and maintenance planning:
- Impellers — precision-machined on 5-axis equipment to advanced aerodynamic designs for high efficiency and wide operating range
- Optimized vanes and diffusers — matched to each impeller stage to maximize pressure recovery and minimize surge
- Low-pressure lubrication system — simplified oil circuit that reduces auxiliary power demand and maintenance complexity
- Easy-maintenance coolers — intercoolers and aftercoolers designed for straightforward inspection, cleaning and bundle replacement
- Long-life pinion bearings — tilting-pad or journal bearing arrangements engineered for extended service intervals
- Non-contacting, non-lubricated labyrinth air seals — provide oil-free air delivery with minimal wear over the seal's service life
- Maestro Universal control system — microprocessor-based control panel for monitoring, protection and sequence operation
Typical applications across industries
Turbo-Air compressors serve a broad cross-section of industries where reliable oil-free air is essential:
- Steel & metal production — plant air, instrument air, process air
- Mining — ventilation, pneumatic conveying, instrumentation
- Textile — weaving, spinning and pneumatic conveying of fibers
- Food & beverage — oil-free air for bottling, packaging and processing
- Automotive — paint shops, assembly lines and pneumatic tools
- Pharmaceutical — clean, oil-free air for production and packaging
- Chemical & petrochemical — process air, nitrogen generation and instrument air
- Power generation — boiler combustion air, soot blowing, instrument air
- Air separation — feed air for oxygen and nitrogen plants
Spare parts and maintenance for Turbo-Air compressors
Like all centrifugal compressors, Turbo-Air machines consume a predictable set of spare parts over their service life. The most frequently replaced items include:
- Air seals and oil seals — labyrinth edges wear with every start-stop cycle; almost always replaced during a major overhaul
- Journal and thrust bearings — tilting-pad bearings on the high-speed pinion shaft and bull gear bearings
- Impellers and diffusers — subject to fouling and erosion; inspect and dye-penetrant test, repair or replace as needed
- Intercooler and aftercooler bundles — fouled tubes raise discharge temperature and reduce efficiency; replace when cleaning is no longer effective
- Gears — inspect for pitting and wear; replace when backlash or tooth damage exceeds limits
- Consumables — air filter elements, oil filter elements, oil mist separators, gaskets and coupling elements
For planned shutdowns, Turbomax assembles complete overhaul service kits per machine serial number — seals, bearings, filters, gaskets and coupling elements packed as one set, so nothing is missing when work starts. Critical parts such as impellers, rotors and bearings are manufactured to order with short lead times, while fast-moving consumables are usually in stock for immediate shipment.
For the full parts lists by model:
- Ingersoll Rand TA 3000 spare parts list
- Ingersoll Rand TA 6000 spare parts list
- Ingersoll Rand MSG spare parts list
FAQ
What is the Ingersoll Rand Turbo-Air (TA) series?
The Turbo-Air (TA) series is Ingersoll Rand's line of oil-free centrifugal air compressors, covering a power range from 112 kW (150 hp) to 2,237 kW (3,000 hp) and discharge pressures up to 42 bar (610 psig). The family includes the TA2000, TA Cooled 2000, TA3000, TA6000, TA2040, TA6040, NX8000 and NX12000 models.
What is the difference between TA and NX series?
The TA series (TA2000, TA3000, TA6000) covers the mid-range power segment from 112 kW to 1,300 kW, while the NX series (NX8000, NX12000) covers the higher power range from 750 kW to 2,237 kW. The NX models also offer a wider pressure range (2.5-14.5 barg) compared to the standard TA models (3.5-10.3 barg).
Which spare parts are most commonly replaced on Turbo-Air compressors?
The most frequently replaced spare parts on Turbo-Air (TA) compressors are air seals, oil seals, journal and thrust bearings, impellers, diffusers, intercooler and aftercooler bundles, gears and filter elements. During a major overhaul, these are typically replaced together as a service kit.
What is the pressure and flow range of the TA6000?
The Ingersoll Rand TA6000 covers a motor power range of 600-1,300 kW (800-1,750 hp), discharge pressure of 3.5-10.3 barg (50-150 psig), and flow capacity of 113-227 m³/min (4,000-8,000 CFM). It weighs approximately 6,350 kg (14,000 lbs) excluding the motor.
Can Turbomax supply spare parts for Turbo-Air compressors?
Yes. Turbomax supplies alternative spare parts for the full Turbo-Air (TA) series including TA2000, TA3000, TA6000, NX8000 and NX12000. Parts include impellers, bearings, seals, diffusers, coolers and overhaul service kits. Send the part number or machine serial number and we will confirm price and delivery.
